Poolstar Wholesale High Quality Sand Filter
P2124
|
Voltage |
220-240V/50Hz |
110v-120v/60hz |
|
Power(W) |
180 |
180 |
|
Current(A) |
1.0 |
1.1 |
| Internal pressure(bar) | 0.10 |
0.10 |
| Pump range(M) | 5 |
7 |
| Pump flow(m³/h) | 11 |
9 |
| Matching pump(HP) | 0.25 |
0.25 |
| Tank Dia. (mm) | 250 | 250 |
| Sand cylinder flow(m³/h) | 5.9 |
5 |
| Sand quantity(Kg) | 10 |
10 |
| Sand cylinder volume | 14L |
14L |
|
Voltage |
220-240V/50Hz |
110-120V/60Hz |
| Power(W) | 250 |
250 |
| Current(A) | 1.33 |
2.89 |
| Internal pressure(bar) | 0.1 | 0.1 |
| Pump range(M) | 8 |
8 |
| Pump flow(m³/h) | 10 |
10 |
| Matching pump(HP) | 0.35 |
0.35 |
| Tank Dia. (mm) | 250 | 250 |
| Sand cylinder flow(m³/h) | 5.6 | 5.6 |
| Sand quantity(Kg) | 10 |
10 |
| Sand cylinder volume | 14L |
14L |
P2127
The P2127 Sand Filter series comprises six configurations, including five 220-240V/50Hz models and one 110-120V/60Hz variant, with power ratings spanning 180W to 750W (0.25-1HP). All units maintain a uniform 330mm tank diameter containing 20kg of filtration media. The system achieves sand bed filtration rates between 4.45-7.5 m³/h, supporting pump performance up to 20 m³/h flow rate and 14-meter head height, while operating at low internal pressures of 0.10-0.26 bar.
| Voltage | 220-240V/50Hz |
220-240V /50Hz |
220-240V /50Hz |
220-240V /50Hz |
220-240V /50Hz |
110-120V /60Hz |
|
Power(W) |
180 |
250 |
370 |
550 |
750 |
250 |
|
Current(A) |
1.1 |
1.3 |
1.9 |
2.2 |
2.6 |
2.7 |
|
Internal pressure(bar) |
0.10 |
0.13 |
0.15 |
0.20 |
0.26 |
0.13 |
|
Pump range(M) |
7 |
8 |
11 |
13 |
14 |
8 |
|
Pump flow(m³h) |
9 |
10 |
12 |
18 |
20 |
10 |
|
Matching pump(HP) |
0.25 |
0.35 |
0.5 |
0.75 |
1 |
0.35 |
|
Tank Dia. (mm) |
330 |
330 |
330 |
330 |
330 |
330 |
|
Sand cylinder flow(m³h) |
4.45 |
5.4 |
6.5 |
7.2 |
7.5 |
5.6 |
|
Sand quantity(Kg) |
20 |
20 |
20 |
20 |
20 |
20 |
|
Sand cylinder volume |
24L |
24L |
24L |
24L |
24L |
24L |

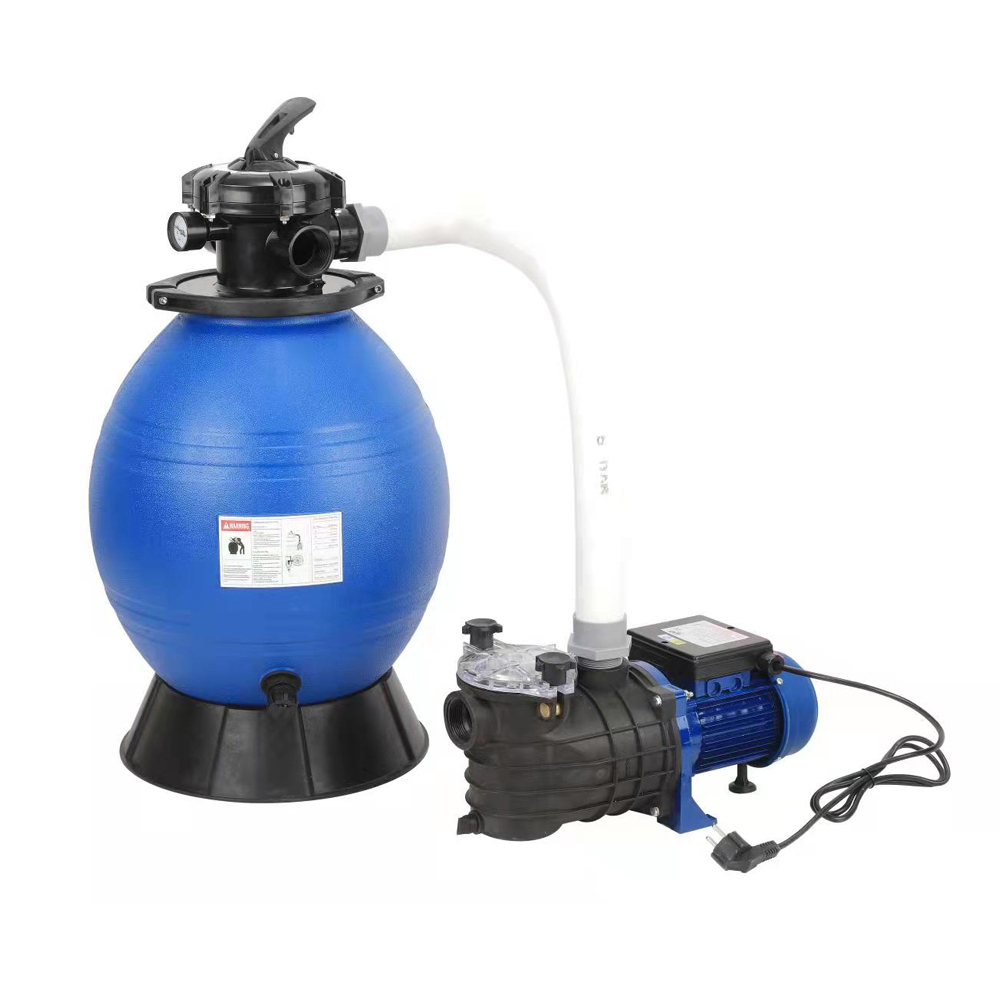

P2129
The P2129 Sand Filter series offers versatile voltage compatibility with four 220-240V/50Hz models and one 110-120V/60Hz variant. Available in five power configurations from 250W to 750W (0.35-1HP), these units feature a consistent 400mm tank diameter holding 30kg of sand. The system delivers sand filtration rates from 6.6 to 9.6 m³/h, supporting pump capacities up to 20 m³/h with maximum head heights of 14 meters at operating pressures of 0.20-0.35 bar.
|
Voltage |
220-240V /50Hz |
220-240V /50Hz |
220-240V /50Hz |
220-240V /50Hz |
110-120V /60Hz |
|
Power(W) |
250 |
370 |
550 |
750 |
250 |
|
Current(A) |
1.35 |
2.0 |
2.35 |
3.0 |
2.8 |
|
Internal pressure(bar) |
0.20 |
0.25 |
0.30 |
0.35 |
0.20 |
|
Pump range(M) |
8 |
11 |
13 |
14 |
8 |
|
Pump flow(m³/h) |
10 |
12 |
18 |
20 |
10 |
|
Matching pump(HP) |
0.35 |
0.5 |
0.75 |
1 |
0.35 |
|
Tank Dia. (mm) |
400 |
400 |
400 |
400 |
400 |
|
Sand cylinder flow(m³/h) |
6.6 |
7.9 |
8.9 |
9.6 |
6.6 |
|
Sand quantity(Kg) |
30 |
30 |
30 |
30 |
30 |
|
Sand cylinder volume |
38L |
38L |
38L |
38L |
38L |

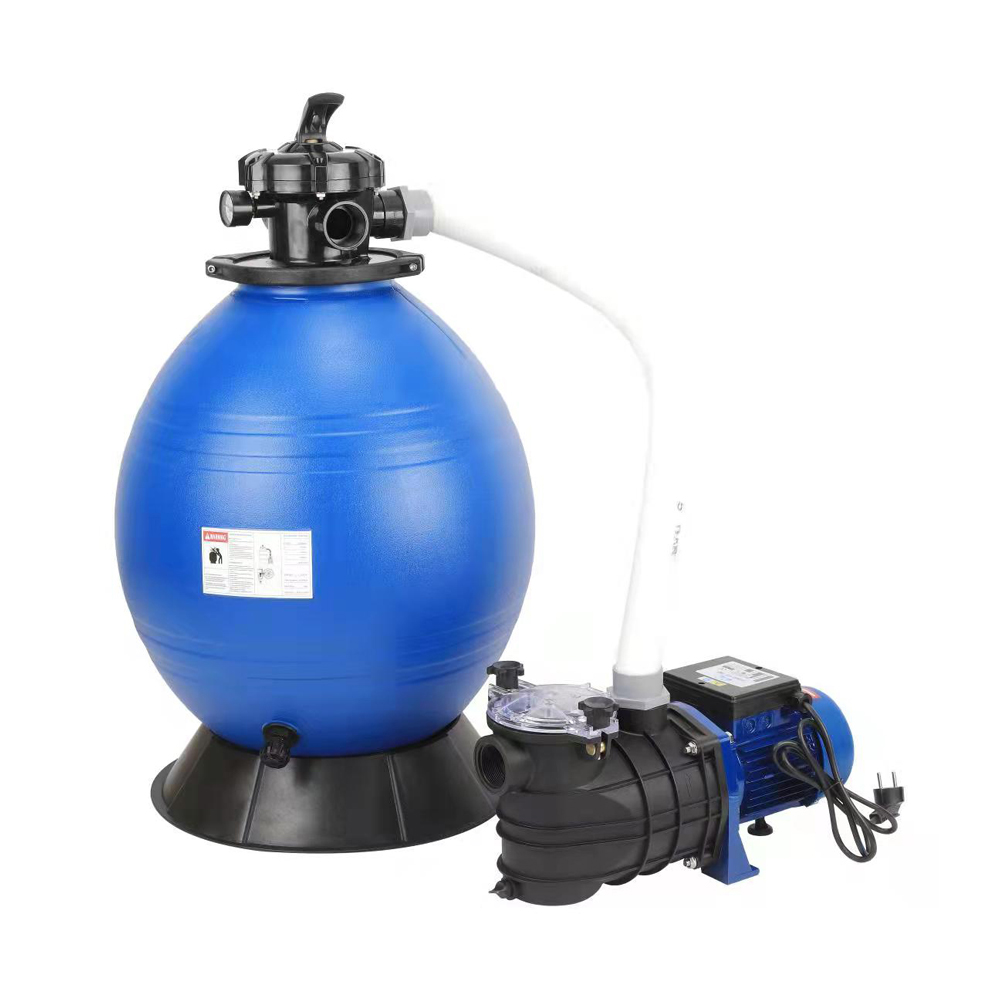

P2130
The P2130 Sand Filter series operates on 220-240V/50Hz and is available in three power configurations: 550W (0.75HP), 750W (1HP), and 1100W (1.5HP). These units feature a universal 500mm diameter tank with 65kg sand capacity, delivering flow rates from 9.2 to 10.6 m³/h. Performance metrics include operational pressures of 0.40-0.55 bar and pumping capabilities reaching 16-meter heights with 21.5 m³/h maximum flow.
|
Voltage |
220-240V /50Hz |
220-240V /50Hz |
220-240V /50Hz |
|
Power(W) |
550 |
750 |
1100 |
|
Current (A) |
2.4 |
3.0 |
3.85 |
|
Internal pressure(bar) |
0.40 |
0.45 |
0.55 |
|
Pump range(M) |
13 |
14 |
16 |
|
Pump flow(m³/h) |
18 |
20 |
21.5 |
|
Matching pump(HP) |
0.75 |
1 |
1.5 |
|
Tank Dia. (mm) |
500 |
0.2 |
0.2 |
|
Sand cylinder flow(m³/h) |
9.2 |
9.85 |
10.6 |
|
Sand quantity(Kg) |
65 |
65 |
65 |
|
Sand cylinder volume |
71L |
71L |
71L |
